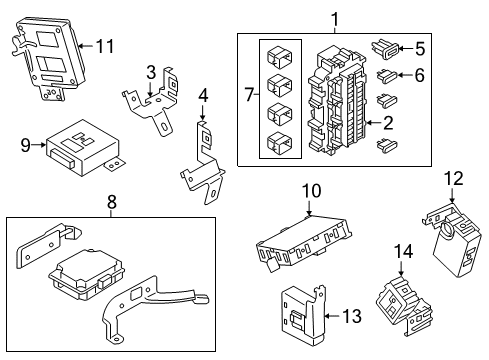

Diagram (1 of 1): Electrical - Fuse & Relay (Instrument Panel & Body)
2020 Infiniti QX80 Controls - Instruments & Gauges Diagram
Enlarge Diagram
Sort by:
Lookup Code
Lookup Code
Part No. & Part Description
Price
Part No. &
Part Description

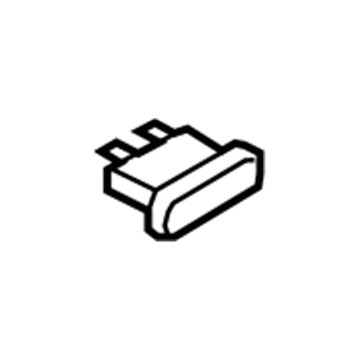

  • Fuse
    6
    24319-8991A
    Fuse
    • Part Notes:
      Instrument Panel & Body, 10 Amp
    MSRP: $4.53
    $3.16
    1
    Add To Cart
  • 6 Infiniti 24319-8991B
    24319-8991B
    Fuse
    • Part Notes:
      Instrument Panel & Body, 15 Amp
    MSRP: $4.53
    $2.86
    1
    Add To Cart
  • 6 Infiniti 24319-8992C
    24319-8992C
    Fuse
    • Part Notes:
      Instrument Panel & Body, 20 Amp
    MSRP: $4.53
    $2.86
    1
    Add To Cart
  • 6 Infiniti 24319-8993B
    24319-8993B
    Fuse
    • Part Notes:
      Instrument Panel & Body, 30 Amp
    • Replaced By:
      24319-8993A
    MSRP: $4.53
    $3.16
    1
    Add To Cart

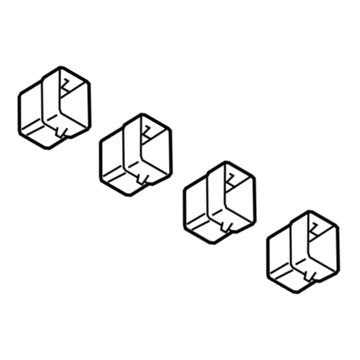

  • 7
    25230-79942
    Relay
    • Part Notes:
      Instrument Panel & Body
    MSRP: $49.00
    $34.23
    1
    Add To Cart

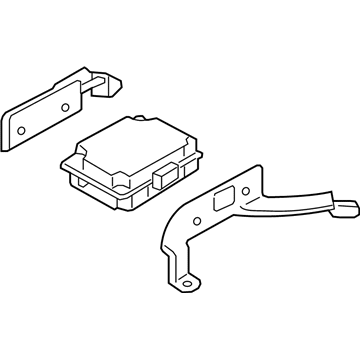

  • 9 Infiniti 253C0-5ZA0A
    253C0-5ZA0A
    Module
    • Part Notes:
      Instrument Panel & Body, Auto Lamp
    MSRP: $1387.09
    $942.18
    1
    Add To Cart

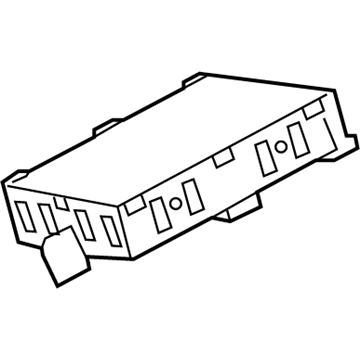

  • 10 Infiniti 284B1-6GW0A
    284B1-6GW0A
    Module
    • Part Notes:
      Instrument Panel & Body, Body Control
    MSRP: $1051.73
    $714.39
    1
    Add To Cart

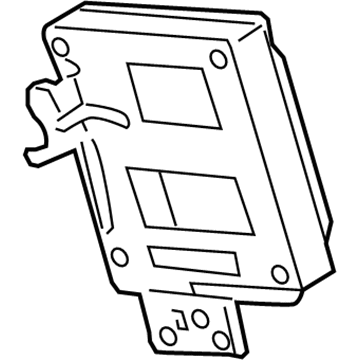

  • 11 Infiniti 284A1-6JE1A
    284A1-6JE1A
    Module
    • Part Notes:
      Instrument Panel & Body, Camera Conroller
    MSRP: $1595.45
    $1163.08
    1
    Add To Cart

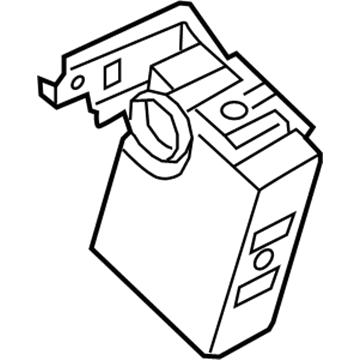

  • 12 Infiniti 284U1-6GW0B
    284U1-6GW0B
    Module
    • Part Notes:
      Instrument Panel & Body, Gateway
    MSRP: $676.22
    $459.32
    1
    Add To Cart

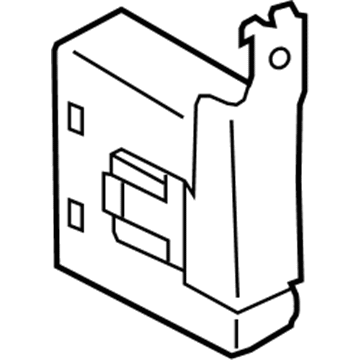

  • 13 Infiniti 98800-5ZM1A
    98800-5ZM1A
    Module
    • Part Notes:
      Instrument Panel & Body, Driver Position
    MSRP: $1148.65
    $780.22
    1
    Add To Cart
  • 14 Infiniti 28500-1LA0B
    28500-1LA0B
    Module
    • Part Notes:
      Instrument Panel & Body, Power Steering
    MSRP: $706.71
    $480.03
    1
    Add To Cart
