Relay fit your 2006 Infiniti FX35

Currently shopping for
2006 Infiniti FX35
Change Vehicle
3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.Engine Room - W - (08/2004-11/2005)

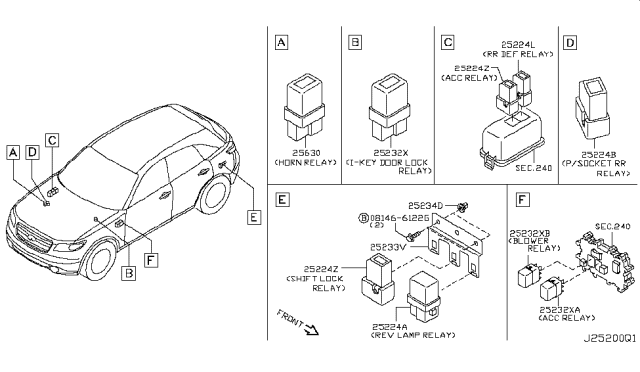

    2006 Infiniti FX35 Relay Diagram 1
  • 2.Engine Room - W - (11/2005-08/2006)

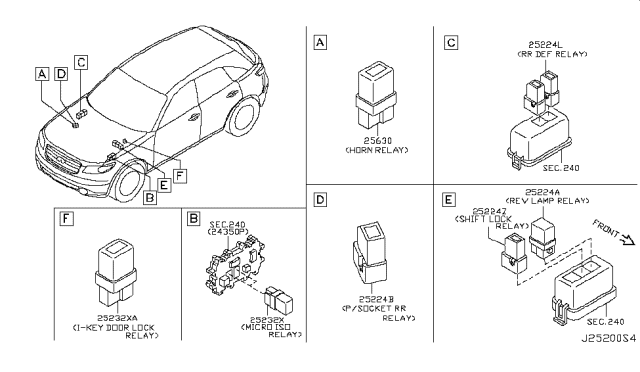

    2006 Infiniti FX35 Relay Diagram 2
  • 3.Engine Room - W - (from 08/2006)
    2006 Infiniti FX35 Relay Diagram 3
Sort by:
Part Description
Lookup Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 25233V
    Infiniti 25235-05B00
    25235-05B00
    Bracket-Light Relay
  • Relay
    25224L
    25230-79964
    Relay
    • REAR DEF(BROWN)JIDECO
    • Production Date: 11/2002-11/2005
    • Replaced By: 25230-7996A
    $42.24 $29.50
    1
    Add To Cart
  • 25224L Infiniti 25230-79963
    25230-79963
    Relay
    • REAR DEF(BROWN)JIDECO
    • Production Date: 11/2005-01/2007
    • Replaced By: 25230-7996A
    $42.24 $29.50
    1
    Add To Cart
  • Relay
    25232X
    25230-79942
    Relay
    • MICROISO(BLACK)MIYAMOTO
    • Fitting Vehicle Options: W
    • Require Quantity: 02
    • Package Quantity: 1
    $49.00 $30.99
    1
    Add To Cart
  • 25232X
    25230-79918
    Relay
    • I-KEY DOOR LOCK(BLACK)MIYAMOTO
    • Fitting Vehicle Options: *W, *W. VK45DE
    $44.35 $30.98
    1
    Add To Cart
  • 25232X
    25230-79916
    Relay
    • I-KEY DOOR LOCK(BLACK)MIYAMOTO
    • Fitting Vehicle Options: *W, *W. 2WD, W
    • Replaced By: 25230-79918
    $44.35 $30.98
    1
    Add To Cart
  • Relay
    25232XA
    25230-79942
    Relay
    • ACC
    • Fitting Vehicle Options: W
    $49.00 $30.99
    1
    Add To Cart
  • 25232XA
    25230-79918
    Relay
    • I-KEY DOOR LOCK(BLACK)MIYAMOTO
    • Fitting Vehicle Options: *W, *W. VK45DE
    $44.35 $30.98
    1
    Add To Cart
  • Relay-Chassis
    25224Z
    25230-79917
    Relay-Chassis
    • SHIFT LOCK
    • Fitting Vehicle Options: *W. VK45DE, *W. VQ35DE
    $11.38 $7.95
    1
    Add To Cart
  • 25224Z
    25230-C9962
    Relay-Chassis
    • ACC(GRAY)JIDECO
      SHIFT LOCK
    • Fitting Vehicle Options: *W, *W. VK45DE, *W. VQ35DE
    • Replaced By: 25230-C996B
    $47.33 $33.06
    1
    Add To Cart
  • Relay-Ignition
    25224B
    25230-79917
    Relay-Ignition
    • P/SOCKET REAR(BLUE)MIYAMOTO
    • Production Date: from 03/2005
    $11.38 $7.95
    1
    Add To Cart
  • 25224B
    25230-79915
    Relay-Ignition
    • P/SOCKET REAR(BLUE)MIYAMOTO
    • Production Date: 11/2002-03/2005
    • Replaced By: 25230-79917
    $11.38 $7.95
    1
    Add To Cart
  • Relay-Light
    25224A
    25230-79917
    Relay-Light
    • REV LAMP(BLUE)MIYAMOTO
    • Production Date: from 11/2005
    $11.38 $7.95
    1
    Add To Cart
  • 25224A Infiniti 25230-C9940
    25230-C9940
    Relay-Light
    • REV LAMP(BLUE)MIYAMOTO
    • Production Date: 11/2002-11/2005
    $39.36 $27.50
    1
    Add To Cart
Genuine Infiniti Parts, the Right Choice
InfinitiPartsDeal.com offers the wholesale prices for genuine 2006 Infiniti FX35 parts. Parts like Relay are shipped directly from authorized Infiniti dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.5L, 8 Cyl 4.5L.
